Kilo-class submarine

The Kilo class, Soviet designation Project 877 Paltus (Russian: Па́лтус, meaning "halibut"), NATO reporting name Kilo, is a class of diesel-electric attack submarines designed and built in the Soviet Union for the Soviet Navy. The class was built until the mid-1990s, when production was switched to the more advanced Project 636 Varshavyanka (Russian: Варшавянка, meaning "Varsovian (inhabitant of Warsaw; feminine)") variant, also known as Improved Kilo class in the West.

"Kilo Class" redirects here. For the novel by Patrick Robinson, see Kilo Class (novel).

Russian Black Sea Fleet's B-265 Krasnodar Improved Kilo-class submarine on the eve of Submariner Day.
Class overview
Builders
OperatorsSee Operators
Preceded byTango class
Succeeded byLada class
SubclassesSindhughosh class
Built1980–present
In service1980–present
In commissionDecember 1980–present
Planned80
Building3
Completed73
Active63
Retired2
Preserved1
General characteristics
TypeAttack submarine
Displacement
  • Surfaced: 2,325 (Project 877)–2,350 (Project 636.3) tons
  • Submerged: 3,075 tons full load (Kilo - Project 877 variant); 3,100 tons full load (Improved Kilo - Project 636.3 - variant[1])
Length70.0–73.8 m (229 ft 8 in – 242 ft 2 in)
Beam9.9 m (32 ft 6 in)
Draft6.2 m (20 ft 4 in)
Installed powerDiesel-electric
Propulsion
  • Diesel-electric propulsion
  • 2 × 1000 kW Diesel generators
  • 1 × 5,500–6,800 shp (4,100–5,100 kW) Propulsion motor
  • 1 × fixed-pitch 6 or 7 bladed propeller (6BL project 877) (7BL project 636)
Speed
  • Surfaced: 17 knots (31 km/h; 20 mph)
  • Submerged: 20 knots (37 km/h; 23 mph)
Range
  • With snorkel: 6,000–7,500 nmi (11,100–13,900 km; 6,900–8,600 mi) at 7 kn (13 km/h; 8.1 mph)
  • Submerged: 400 nmi (740 km; 460 mi) at 3 kn (5.6 km/h; 3.5 mph)
  • Full run: 12.7 nmi (23.5 km; 14.6 mi) at 21 kn (39 km/h; 24 mph)
Endurance45 days
Test depth
  • Operational: 240 m (790 ft)
  • Maximum: 300 m (980 ft)
Complement52
Armament
Russian Project 877 in the English Channel in 2018
A Russian, Kilo-class diesel-powered attack submarine underway on the surface

Role

These attack submarines are mainly intended for anti-shipping and anti-submarine operations in relatively shallow waters. Original Project 877 boats are equipped with Rubikon MGK-400 sonar system (with NATO reporting name Shark Gill), which includes a mine detection and avoidance sonar MG-519 Arfa (with NATO reporting name Mouse Roar).

Newer Project 636 boats are equipped with improved MGK-400EM, with MG-519 Arfa also upgraded to MG-519EM. MGK 400E can detect submarines with 0.05 Pa/Hz noisiness in 16 km and surface vessels with 10 Pa/Hz noisiness in 100 km.[3] The improved sonar systems have reduced the number of operators needed by sharing the same console via automation.

Anechoic tiles are fitted on casings and fins to absorb the sound waves of active sonar, which results in a reduction and distortion of the return signal.[4] These tiles also help attenuate sounds that are emitted from the submarine, thus reducing the range at which the submarine may be detected by passive sonar.[5]

Future

The Kilo class was planned to have been succeeded by the Lada class. However, by November 2011 it was apparent that the Lada-class would be delayed because Sankt Peterburg (B-585), the lead boat of the class, had shown major deficiencies. On 27 July 2012, the Russian Navy commander-in-chief announced that construction of the Lada-class submarines would resume, having undergone design changes.[6] Series production was reported to be underway in the latter 2010s.[7]

Nevertheless, the Russian Navy also moved forward in the late 2010s, with the construction of Project 636.3, an improved version of the Kilo class. By November 2019, six units had been built for the Black Sea Fleet and further boats were planned for the Pacific and Baltic Fleets.[8]

Variants

One Kilo-class submarine, B-871, was equipped with pump-jet propulsion.[9][10]

Operators

The first submarine entered service in the Soviet Navy in 1980, and the class remains in use with the Russian Navy today; 14 original Kilo-class vessels believed to still be in active service with the Russian Navy, while eight Improved Kilo-class subs had been delivered as of 2021. About forty vessels have been exported to several countries:

Possible purchasers
  • The government of Venezuela expressed interest in buying three Project 636 Kilo-class submarines[33] In 2019, a source reported the purported usage of a submarine of this class to insert Russian soldiers into Venezuela to protect the Venezuelan regime.[34]
  • The Philippine Navy has shown its interest on the Kilo-class submarine as part of its modernization program. Defense Secretary Delfin Lorenzana said that the country is now evaluating the Russian offer.[35]

Failed bids
  • The Indonesian Navy was interested in purchasing two Kilo-class submarines. But in 2014 the Chief of Staff of the Indonesian Navy Laksamana Marsetio after a visit to Russia with the team from the Indonesian Navy to inspect the said submarines decided to cancel the plans. He said "The submarines look good on the outside, but the inside is filled with broken equipment, and the two submarines have been in storage for two years." Indonesia chose to buy six Improved Jang Bogo-class submarines later known as Nagapasa-class submarine instead including a transfer of technology, where Indonesia will eventually build four of six of the submarines with South Korea.[36]

Specifications
Schematic drawing of the Kilo class

There are several variants of the Kilo class. The information below is the smallest and largest number from the available information for all three variants of the ship.[20]

  • Displacement:
    • 2,300–2,350 tons surfaced
    • 3,000–4,000 tons submerged
  • Dimensions:
    • Length: 70–74 meters
    • Beam: 9.9 meters
    • Draft: 6.2–6.5 meters
  • Maximum speed
    • 10–12 knots surfaced (18–22 km/h)
    • 17–25 knots submerged (31–46 km/h)
  • Propulsion: Diesel-electric 5,900 shp (4,400 kW)
  • Maximum depth: 300 meters (240–250 meters operational)
  • Endurance
    • 400 nautical miles (700 km) at 3 knots (6 km/h) submerged
    • 6,000 nautical miles (11,000 km) at 7 knots (13 km/h) snorkeling (7,500 miles for the Improved Kilo class)
    • 45 days sea endurance
  • Armament
  • Crew: 52
  • Price per unit is US$200–250 million (China paid approx. US$1.5-2 billion for 8 Project 636 Kilo-class submarines)
  • The Polish Kilo-class submarine ORP Orzeł, 26 June 2011
  • Russian Kilo-class submarines in Polyarny, Murmansk Oblast
  • An Algerian Kilo-class submarine
  • A Chinese Kilo-class submarine being delivered from Russia as deck cargo in 1995.
  • ORP Orzeł, the control room of an 877E-class submarine

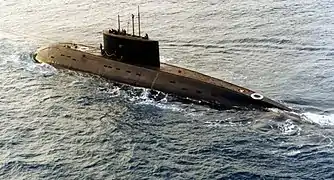

  • The Iranian Kilo-class submarine Yunes, during delivery in 1995.
  • Indian Kilo-class submarine, INS Sindhughosh
  • Diesel submarine Kilo-class Kaluga returns from a long voyage

Project 877 units
Project 877 – significant dates
Operator # Name Shipyard Project Laid down Launched Commissioned Fleet Status
 Russia B-248 x Komsomolsk-on-Amur 877 16 March 1980 12 September 1980 31 December 1980 decommissioned 2001
 Russia B-260 Chita Komsomolsk-on-Amur 877 22 February 1981 23 August 1981 30 December 1981 PF decommissioned 2013, sank partially on way to scrap in 2019
 Russia B-227 Vyborg Komsomolsk-on-Amur 877 23 February 1982 16 September 1982 23 February 1983 BF decommissioned 2018 (exhibit patriot park Kronstadt)
 Russia B-229 x Komsomolsk-on-Amur 877 23 February 1983 15 July 1983 30 October 1983 decommissioned 2002
 Russia B-404 x Komsomolsk-on-Amur 877 7 May 1983 24 September 1983 30 December 1983 decommissioned 2002
 Russia B-401 Novosibirsk Nizhniy Novgorod 877 6 October 1982 15 March 1984 30 September 1984 NF decommissioned 2012
 Russia B-402 Vologda Nizhniy Novgorod 877 24 August 1983 29 September 1984 30 December 1984 NF decommissioned 2016
 Russia B-405 (ex Tyumenskiy Komsomolets) Komsomolsk-on-Amur 877 20 April 1984 21 September 1984 30 December 1984 decommissioned 2002
 Poland 291 (ex-B-351) Orzeł Nizhniy Novgorod 877E 29 September 1984 7 June 1985 29 April 1986 active as of 2010
 Romania 581 (ex-B-801) Delfinul Nizhniy Novgorod 877E 1984 1985 August 1985 unknown (in reserve from 1995)
 India S55 Sindhughosh Saint Petersburg 877EKM 29 May 1983 29 July 1985 25 November 1985 active as of 2010, modernized to project 08773 in 2002–2005
 Russia B-470 x Komsomolsk-on-Amur 877 6 May 1985 27 August 1985 30 December 1985 decommissioned 2005
 Russia B-806 Dmitrov Nizhniy Novgorod 877EKM 15 October 1984 30 April 1986 25 September 1986 BF active as of 2018[37]
 India S56 Sindhudhvaj Saint Petersburg 877EKM 1 April 1986 27 July 1986 25 November 1986 active as of 2010
 Algeria 012 Rais Hadj Mubarek Nizhniy Novgorod 877EKM 1985 1986 29 November 1986 Upgraded in 2010, able to launch Klub missiles
 Russia B-439 x Komsomolsk-on-Amur 877 4 April 1986 31 July 1986 30 December 1986 decommissioned 2005
 India S57 Sindhuraj Nizhniy Novgorod 877EKM 1986 1987 2 September 1987 active as of 2010, modernized to project 08773 in 1999–2001
 Algeria 013 El Hadj Slimane Nizhniy Novgorod 877EKM 1986 1987 25 November 1987 Upgraded in 2011, able to launch Klub missiles
 Myanmar 71 UMS Minye Theinkhathu, (ex-Sindhuvir) Saint Petersburg 877EKM 15 May 1987 13 September 1987 25 December 1987 modernized to project 08773 in 1997–1999, transferred to Myanmar Navy in 2020
 Russia B-445 Svyatoi Nikolai Chudotvorets Komsomolsk-on-Amur 877 21 March 1987 26 September 1987 30 January 1988 PF May have decommissioned 2020;[38] listed as still in service by one source[39]
 India S59 Sindhuratna Nizhniy Novgorod 877EKM 1987 1988 14 August 1988 active as of 2010, modernized to project 08773 in 2001–2003
 India S60 Sindhukesari Saint Petersburg 877EKM 20 April 1988 16 August 1988 29 October 1988 active as of 2010, modernized to project 08773 in 1999–2001
 Russia B-808 Yaroslavl Nizhniy Novgorod 877 29 September 1986 30 July 1988 27 December 1988 NF decommissioned 2022[40]
 Russia B-394 Nurlat Komsomolsk-on-Amur 877 15 April 1988 3 September 1988 30 December 1988 PF active 2018
 Russia B-800 Kaluga (ex-Vologodskij komsomolets) Nizhniy Novgorod 877LPMB 5 March 1987 7 May 1989 30 September 1989 NF refitted in 2009–2012, active 2022[40]
 India S61 Sindhukirti Saint Petersburg 877EKM 5 April 1989 26 August 1989 30 October 1989 active, modernized to project 08773
 Russia B-464 Ust'-Kamchatsk Komsomolsk-on-Amur 877 26 May 1989 23 September 1989 30 January 1990 PF active 2018
 Russia B-459 Vladikavkaz Nizhniy Novgorod 877 25 February 1988 29 April 1990 30 September 1990 NF refitted in 2011–2015, active, entered Baltic Sea 3 July 2018 to take part in Main Naval Parade in St Petersburg on 29 July.
 India S62 Sindhuvijay Saint Petersburg 877EKM 6 April 1990 27 July 1990 27 October 1990 active as of 2010, modernized to project 08773 in 2005–2007
 Russia B-871 Alrosa Nizhniy Novgorod 877V 17 May 1988 September 1989 30 December 1990 BSF under repair 2019
 Russia B-471 Magnitogorsk Nizhniy Novgorod 877 26 October 1988 22 September 1990 30 December 1990 NF active 2018
 Russia B-494 Ust'-Bolsheretsk Komsomolsk-on-Amur 877 5 May 1990 4 October 1990 30 December 1990 PF active 2018
 Iran 901 Taregh Saint Petersburg 877EKM 5 April 1991 25 September 1991 25 December 1991 active as of 2012[41] Upgraded in Iran shipyard[42]
 Russia B-187 Komsomolsk-on-Amur Komsomolsk-on-Amur 877 7 May 1991 5 October 1991 30 December 1991 PF active 2018[43]
 Russia B-177 Lipetsk Nizhniy Novgorod 877 3 November 1989 27 July 1991 30 December 1991 NF active 2018
 Russia B-190 Krasnokamensk Komsomolsk-on-Amur 877 8 May 1992 25 September 1992 30 December 1992 PF active 2018
 Iran 902 Noah Saint Petersburg 877EKM 30 April 1992 16 October 1992 31 December 1992 unknown (probably in modernization in Iranian shipyard)
 Russia B-345 Mogocha Komsomolsk-on-Amur 877 22 April 1993 6 October 1993 22 January 1994 Decommissioned 29 May 2021[38]
 People's Republic of China 364 Yuan Zheng 64 Hao Nizhniy Novgorod 877EKM ??? 1994 10 November 1994 Decommissioned 2021
 People's Republic of China 365 Yuan Zheng 65 Hao Nizhniy Novgorod 877EKM ??? 1995 14 August 1995 Decommissioned 2021
 Iran 903 Yunes Saint Petersburg 877EKM 5 February 1992 12 July 1994 2 September 1996 active as 2011[44] (probably in modernization in Iranian shipyard)
 India S63 Sindhurakshak Saint Petersburg 877EKM 16 February 1995 26 June 1997 2 October 1997 On 29 January 2013, the Sindhurakshak began shipment to India from Severodvinsk, Russia after repairs. On 14 August 2013, there was an explosion and fire on the Sindhurakshak suspected to have occurred from the munitions onboard - killing 3 officers and 15 sailors at the Indian Navy's Dockyard at Mumbai Port. The submarine is reported to have been completely destroyed.[45]
 India S65 Sindhurashtra Saint Petersburg 877EKM 12 December 1998 14 October 1999 16 May 2000 active as of 2010

Project 636 units
Project 636 – significant dates
Operator # Name Shipyard Project Laid down Launched Commissioned Fleet Status
 People's Republic of China 366 Yuan Zheng 66 Hao Saint Petersburg 636 16 July 1996 26 April 1997 26 August 1997 active as of 2006
 People's Republic of China 367 Yuan Zheng 67 Hao Saint Petersburg 636 28 August 1997 18 June 1998 25 October 1998 active as of 2006
 People's Republic of China 368 Yuan Zheng 68 Hao Saint Petersburg 636M 18 October 2002 27 May 2004 20 October 2004 active as of 2006
 People's Republic of China 369 Yuan Zheng 69 Hao Saint Petersburg 636M 18 October 2002 19 August 2004 2005 active as of 2006
 People's Republic of China 370 Yuan Zheng 70 Hao Saint Petersburg 636M 2004 May 2005 2005 active as of 2006
 People's Republic of China 371 Yuan Zheng 71 Hao Saint Petersburg 636M 2004 2005 2005 active as of 2006
 People's Republic of China 372 Yuan Zheng 72 Hao Saint Petersburg 636M 2005 2005 2006 active as of 2006
 People's Republic of China 373 Yuan Zheng 73 Hao Nizhniy Novgorod 636M July 1992 8 May 2004 5 August 2005 active as of 2007
 People's Republic of China 374 Yuan Zheng 74 Hao Severodvinsk 636M 29 May 2003 21 May 2005 30 December 2005 active as of 2006
 People's Republic of China 375 Yuan Zheng 75 Hao Severodvinsk 636M 29 May 2003 14 July 2005 30 December 2005 active as of 2006
 Algeria 021 Messali el Hadj Saint Petersburg 636M 2006 20 November 2008 28 August 2009 active
 Algeria 022 Akram Pacha Saint Petersburg 636M 2007 9 April 2009 29 October 2009 active
 Vietnam 182 Hà Nội Saint Petersburg 636.1 25 August 2010 28 August 2012[46] 3 April 2014 active[47][48]
 Vietnam 183 Hồ Chí Minh City Saint Petersburg 636.1 28 September 2011 28 December 2012 3 April 2014 active[49][50]
 Vietnam 184 Hải Phòng Saint Petersburg 636.1 August 2013[51] 1 August 2015 active[52]
 Vietnam 185 Khánh Hoà Saint Petersburg 636.1 2013 28 March 2014[53] 1 August 2015 active[54]
 Vietnam 186 Đà Nẵng Saint Petersburg 636.1 28 December 2014 28 February 2017 active[55]
 Vietnam 187 Bà Rịa-Vũng Tàu Saint Petersburg 636.1 28 May 2014[56] 28 September 2015 28 February 2017 active[57]
 Algeria 031 El Ouarsenis Saint Petersburg 636.1 2015 14 March 2017 9 January 2019 active[58]
 Algeria 032 El Hoggar Saint Petersburg 636.1 18 June 2018 9 January 2019 active[58]

Project 636.3 units

Italics indicate estimates

Project 636.3 – significant dates
Operator # Name Shipyard Project Laid down Launched Commissioned Fleet Status
 Russia B-261 Novorossiysk Saint Petersburg 636.3 20 August 2010[59] 28 November 2013[60] 22 August 2014[61][62] BSF active
 Russia B-237 Rostov-on-Don Saint Petersburg 636.3 21 November 2011[63] 26 June 2014[64] 30 December 2014 BSF active[65]
 Russia B-262 Stary Oskol[66] Saint Petersburg 636.3 17 August 2012[67] 28 August 2014[68] 25 June 2015 BSF active
 Russia B-265 Krasnodar Saint Petersburg 636.3 20 February 2014[69] 25 April 2015[70] 5 November 2015 BSF active
 Russia B-268 Velikiy Novgorod Saint Petersburg 636.3 30 October 2014[71] 18 March 2016[72] 25 October 2016[73] BSF active
 Russia B-271 Kolpino Saint Petersburg 636.3 30 October 2014[71] 31 May 2016[74] 24 November 2016 BSF active
 Russia B-274 Petropavlovsk-Kamchatsky Saint Petersburg 636.3 28 July 2017[75] 28 March 2019[76] 25 November 2019[77] PF active
 Russia B-603 Volkhov Saint Petersburg 636.3 28 July 2017[75] 26 December 2019[78] 24 October 2020[79] PF active; carried out land-attack cruise missile tests in January 2022[80]
 Russia B-602 Magadan Saint Petersburg 636.3 1 November 2019[81] 26 March 2021[82] 12 October 2021[83][84][85][86][87][88] PF Active; deployed in the Baltic as of late 2021[85][89][90]
 Russia B-588? Ufa Saint Petersburg 636.3 1 November 2019[81] 31 March 2022[91] 2022[87][92] PF Fitting out
 Russia B-??? Mozhaysk Saint Petersburg 636.3 23 August 2021[93][94] 2023[95][92] PF under construction
 Russia B-??? Yakutsk Saint Petersburg 636.3 23 August 2021[93][94] 2024[96][97][87][92] PF under construction[98]
 Russia B-??? Petrozavodsk Saint Petersburg 636.3 2022[92] 2025[92] BF[92] ordered,[99][100] improved design[101]

See also

References
  1. Gady, Franz-Stefan (7 October 2019). "New Russian Attack Sub Enters Sea Trials". The Diplomat.
  2. "АПЛ Проекта 636.3" [Project 636.3 Nuclear Submarine]. pp.userapi.com (in Russian). Archived from the original on 30 August 2017. Retrieved 30 August 2017.
  3. "MGK-400EM Sonar". Rosoboronexport. Retrieved 18 July 2020.
  4. Anechoic tiles are fitted on casings and fins to absorb the sonar sound waves of active sonar, which results in a reduction and distortion of the return signal.
  5. "Kilo-class Submarines". Russiafile.com. Archived from the original on 24 September 2015. Retrieved 29 October 2008.
  6. "Russia to Resume Construction of Diesel Subs". RIA Novosti. 27 July 2012. Archived from the original on 1 August 2012. Retrieved 30 March 2014.
  7. "Project 677 Lada Class / Project 1650 Amur Class Submarines". Naval-Technology.com.
  8. Gady, Franz-Stefan (22 November 2019). "First Project 636.3 Kilo-Class Attack Sub to Enter Service With Russia's Pacific Fleet This Month". The Diplomat.
  9. "Russian submarine towed to port after engine malfunction". RIA Novosti. 23 November 2009. Archived from the original on 21 January 2012. Retrieved 8 March 2014.
  10. "Kilo Class Submarine "Alrosa": Black Sea Fleet, Russian Federation". Alrosa.net. Archived from the original on 28 July 2012. Retrieved 8 March 2014.
  11. "Algeria – Navy". Country-data.com. December 1993. Archived from the original on 18 March 2012. Retrieved 28 September 2011.
  12. "Algeria looking to procure two additional Improved Kilo Project 636M Diesel Submarines from Russia". NavyRecognition.com. 24 September 2012. Archived from the original on 12 October 2013. Retrieved 8 March 2014.
  13. Алжир может закупить российские подводные лодки [Algeria may buy Russian submarines]. Vpk-news.ru (in Russian). Archived from the original on 12 October 2013. Retrieved 8 March 2014.
  14. "Наука и техника: Алжир докупит у России две "Варшавянки"" [Science and Technology: Algeria will buy two Varshavyanks from Russia]. Lenta.ru (in Russian). Archived from the original on 12 October 2013. Retrieved 8 March 2014.
  15. "Аналитическая Записка: Статистика Мирового Экспорта Военно-Морской Техники В Ближнесрочной Перспективе" [Policy Brief: Short Term Global Naval Equipment Export Statistics] (PDF). Центр анализа мировой торговли оружием [World Arms Trade Analysis Center] (in Russian). 2013. Archived (PDF) from the original on 14 October 2013. Retrieved 8 March 2014.
  16. "Алжир заказал Рособоронэкспорту две подводные лодки" [Algeria orders two submarines from Rosoboronexport]. KM.ru (in Russian). 19 September 2012. Archived from the original on 14 October 2013. Retrieved 8 March 2014.
  17. "Kilo Class (Project 636/877EKM) Diesel-Electric Submarine". SinoDefence.com. 23 February 2009. Archived from the original on 23 February 2007. Retrieved 28 September 2011.
  18. "SSK Kilo Class (Type 877EKM) Attack Submarine". Naval Technology. Archived from the original on 16 September 2011. Retrieved 28 September 2011.
  19. Pike, John. "Kilo-class submarine – People's Liberation Army Navy". Globalsecurity.org. Archived from the original on 9 December 2011. Retrieved 28 September 2011.
  20. "Project 877 / 636 Kilo class diesel-electric torpedo submarine". FAS.org. Archived from the original on 27 October 2011. Retrieved 28 September 2011.
  21. "Sindhugosh (Kilo) Class". Bharat Rakshak. 16 January 2008. Archived from the original on 8 March 2009.
  22. "Myanmar to receive its first Kilo class submarine from India". NavyRecognition.com. July 2019.
  23. Mazumdar, Mrityunjoy (19 October 2020). "Myanmar Navy showcases newly acquired submarine in Fleet Exercise Bandoola". Jane's.
  24. "Okręt Podwodny Typu Kilo (Proj. 877E)" [Type Kilo Submarine (Project 877E)]. Polish Navy (in Polish). Archived from the original on 20 January 2018. Retrieved 28 September 2011.
  25. "Russian Navy commissions sixth Project 636.3 Varshavyanka-class submarine". Navaltoday.com. 24 November 2016. Archived from the original on 29 January 2017. Retrieved 27 January 2017.
  26. "Russian Navy Orders 6 Project 636.3 Improved Kilo SSK to Boost Pacific Fleet Submarine Force". NavyRecognition.com. 20 January 2016. Archived from the original on 5 September 2016. Retrieved 4 September 2016.
  27. "Названы сроки постройки серии дизельных подлодок для Тихоокеанского флота" [The timing of the construction of a series of diesel submarines for the Pacific Fleet has been announced]. Lenta.ru (in Russian). 2 September 2016. Archived from the original on 3 September 2016. Retrieved 4 September 2016.
  28. "Russian Navy signs contract during Army 2020 forum for two more diesel submarines". NavyRecognition.com. August 2020.
  29. Nikolsky, Alexey (6 August 2020). "Минфин и "Роскосмос" вступили в публичные препирательства о сокращении расходов" [The Ministry of Finance and "Roscosmos" entered into a public altercation about cutting costs]. Vedomosti (in Russian).
  30. "Russia dominates Asian market with 28 diesel subs". Rusnavy.com. 15 December 2009. Archived from the original on 15 October 2011. Retrieved 28 September 2011.
  31. "Vietnam receives first Russian-made submarine". Xinhua News Agency. 2 January 2014. Archived from the original on 9 January 2014. Retrieved 4 January 2014.
  32. "Last Kilo submarine arrives at Cam Ranh Port". Voice of Vietnam. 21 January 2017. Archived from the original on 2 February 2017. Retrieved 27 January 2017.
  33. "Venezuela acquiring Russian submarines". United Press International. 10 August 2010. Archived from the original on 13 March 2012. Retrieved 28 September 2011.
  34. Salazar, Marianella (3 April 2019). "Agujero negro" [Black Hole]. Runrunes (in Spanish). Archived from the original on 10 April 2019. Retrieved 10 April 2019.
  35. Grevatt, Jon (27 January 2017). "Philippines evaluates Russian Kilo-class submarines". IHS Jane's Defence Industry. Archived from the original on 29 January 2017. Retrieved 30 January 2017.
  36. Kurniawan, Dian (12 March 2014). "TNI AL Batal Beli Kapal Selam Rusia" [Indonesian Navy Cancels Buying Russian Submarines]. Liputan 6 (in Indonesian). Retrieved 25 March 2020.
  37. "Russian Minister of Defence General of the Army Sergei Shoigu holds teleconference with leadership of Armed Forces". Russian Ministry of Defence. Archived from the original on 18 March 2018. Retrieved 17 March 2018.
  38. "Large submarines - Project 877, 636".
  39. "Russian Navy 2021: List of Active Russian Navy Ships and Submarines". Russianships.info. 24 May 2021.
  40. "Боевые корабли основных классов ВМФ России на 01.02.2022". livejournal.com (in Russian). 1 February 2022.
  41. "Iran relaunches Russian-made submarine". Fox News Channel. 29 May 2012. Archived from the original on 30 June 2012. Retrieved 8 March 2014.
  42. "Иран вернул на флот подводную лодку российской постройки" [Iran returns Russian-built submarine to Navy]. Flot.com (in Russian). 29 May 2012. Archived from the original on 30 April 2013. Retrieved 8 March 2014.
  43. "Russian Kilo-class submarine rejoins navy after 14 years of repairs". Navaltoday.com. 27 January 2017. Archived from the original on 27 January 2017. Retrieved 27 January 2017.
  44. "Иранские подводные лодки отправятся в 90-дневный поход" [Iranian submarines will go on a 90-day cruise]. Flot.com (in Russian). 1 August 2011. Archived from the original on 13 November 2011. Retrieved 28 September 2011.
  45. "Indian submarine hit by explosion at Mumbai port". BBC News. 14 August 2013. Archived from the original on 15 August 2013. Retrieved 8 March 2014.
  46. "Головная подводная лодка для ВМС Вьетнама спущена на воду" [Vietnam's lead submarine launched]. Flotprom.ru (in Russian). 28 August 2012. Archived from the original on 21 October 2012. Retrieved 8 March 2014.
  47. "First Type 636 diesel submarine (SSK) ordered by Vietnam arrived at Cam Ranh base". NavyRecognition.com. 2 January 2014. Archived from the original on 4 January 2014. Retrieved 4 January 2014.
  48. "Vietnam Navy receives 2 Russia-made project 636 Kilo class diesel electric submarines". NavyRecognition.com. 6 April 2014. Archived from the original on 7 April 2014. Retrieved 6 April 2014.
  49. WarComissar (20 March 2014). "Vietnam received the second project 636 submarine". Facebook. Archived from the original on 9 January 2016. Retrieved 22 March 2014.
  50. "Tàu ngầm TP.Hồ Chí Minh vào đến vịnh Cam Ranh" [Ho Chi Minh City submarine arrives at Cam Ranh Bay]. Tuổi Trẻ (in Vietnamese). 20 March 2014. Archived from the original on 7 August 2014. Retrieved 22 March 2014.
  51. Россия поставит Вьетнаму 2 подводные лодки до конца года [Russia will supply Vietnam with 2 submarines by the end of the year]. Vpk-news.ru (in Russian). Archived from the original on 29 December 2014. Retrieved 8 March 2014.
  52. "Vietnam Navy has taken delivery of 3rd Kilo-class submarine HQ 184 Hải Phòng". DefenceRadar.com. 9 December 2014. Archived from the original on 10 December 2014. Retrieved 10 December 2014.
  53. WarComissar (22 March 2014). "The fourth submarine for the Vietnam People's Navy will be launched on March 28th". Facebook. Archived from the original on 9 January 2016. Retrieved 22 March 2014.
  54. "Tàu ngầm Kilo 185 tiến vào quân cảng Cam Ranh" [Kilo 185 submarine enters Cam Ranh military port]. VnExpress Tin Nhanh Vietnam (in Vietnamese). Archived from the original on 3 July 2015. Retrieved 2 July 2015.
  55. Đơn vị tác chiến điện tử (Comrade Commissar). "Cá quả mang tên Đà Nẵng (SSK-186) đã về nhà" [The Da Nang (SSK-186) has come home]. Facebook (in Vietnamese). Retrieved 3 February 2016.
  56. "Russia Laid Down the 6th and last Kilo-Class Diesel Electric Submarine for Vietnam". NavyRecognition.com. 3 June 2014. Archived from the original on 3 July 2014. Retrieved 7 June 2014.
  57. "Last Two of Six Russia-Built Project 636.1 Submarines Commissioned with Vietnamese Navy". NavyRecognition.com. Archived from the original on 9 March 2017. Retrieved 10 March 2017.
  58. "Algeria commissions two Kilo class submarines". DefenceWeb. 10 January 2019. Archived from the original on 10 January 2019. Retrieved 10 January 2019.
  59. "Submarine Novorossiysk has been laid down at Admiralteyskie Verfi". Rusnavy.com. 20 August 2010. Archived from the original on 17 October 2011. Retrieved 28 September 2011.
  60. "На ОАО "Адмиралтейские верфи" Спущена На Воду Головная Подводная Лодка Серии Для Вмф Рф" [JSC Admiralty Shipyards Launches the Lead Submarine Series For the Russian Navy]. Admiralty Shipyard (Press release) (in Russian). 28 November 2013. Archived from the original on 28 March 2019. Retrieved 28 November 2013.
  61. "Госкомиссия приняла подлодку "Новороссийск"" [The State Commission accepted the submarine "Novorossiysk"]. flotprom.ru (in Russian). Archived from the original on 22 August 2014. Retrieved 22 August 2014.
  62. "Russia's first Varshavyanka-class submarine "Novorossiisk" joined Black Sea Fleet". NavyRecognition.com. 18 September 2014. Archived from the original on 29 September 2014. Retrieved 23 September 2014.
  63. "Подводная лодка "Ростов-на-Дону" заложена на Адмиралтейских верфях" [Submarine "Rostov-on-Don" laid down at the Admiralty shipyards]. Flot.com (in Russian). 21 November 2011. Archived from the original on 26 November 2011. Retrieved 8 March 2014.
  64. "На ОАО "Адмиралтейские верфи" Спущена На Воду Подводная Лодка Для Вмф Рф" [JSC Admiralty shipyards launched a submarine for the Russian Navy]. Admiralty Shipyard (Press release) (in Russian). 26 June 2014. Archived from the original on 28 March 2019. Retrieved 26 June 2014.
  65. "Heavily-armed Russian sub heads to Mediterranean, possibly Libya or Syria: video". Al Masdar News. 23 June 2020. Retrieved 30 June 2020.
  66. "НАПЛ "Санкт-Петербург" выходит из ремонта" [Submarine "Saint Petersburg" is out of repair]. Flotprom.ru (in Russian). 15 May 2012. Archived from the original on 8 March 2014. Retrieved 8 March 2014.
  67. "Подводная лодка "Старый Оскол" для Черноморского флота будет заложена на Адмиралтейских верфях 17 августа" [The Black Sea Fleet submarine "Stary Oskol" will be laid down at the Admiralty shipyards on 17 August]. Flotprom.ru (in Russian). 15 August 2012. Archived from the original on 21 October 2012. Retrieved 8 March 2014.
  68. "На ОАО "Адмиралтейские верфи" Спущена На Воду Подводная Лодка Проекта 636.3 "Старый Оскол"" [Submarine of Project 636.3 "Stary Oskol" was launched at JSC Admiralteyskie Verfi]. Admiralty Shipyard (Press release) (in Russian). 28 August 2014. Archived from the original on 28 March 2019. Retrieved 28 August 2014.
  69. "На ОАО "Адмиралтейские верфи" Заложили Четвертую Подводную Лодку Проекта 636.3 В Серии Для Вмф Рф" [The Fourth Submarine of Project 636.3 was laid down at JSC Admiralteyskie Verfi for the Russian Navy]. Admiralty Shipyard (Press release) (in Russian). 20 February 2014. Archived from the original on 28 March 2019. Retrieved 20 February 2014.
  70. "ОАО "Адмиралтейские верфи" Спустило На Воду Первую В Серии Подводную Лодку "Краснодар"" [JSC Admiralteyskie Verfi Launched the First in Series Submarine "Krasnodar"]. Admiralty Shipyard (Press release) (in Russian). 25 April 2015. Archived from the original on 28 March 2019. Retrieved 25 April 2015.
  71. "ОАО "Адмиралтейские верфи" Заложило Две Большие Дизель-Электрические Подводные Лодки "Великий Новгород" и "Колпино"" [JSC Admiralty Shipyards laid down two large diesel-electric submarines "Veliky Novgorod" and "Kolpino"]. Admiralty Shipyard (Press release) (in Russian). 28 July 2017. Archived from the original on 28 March 2019. Retrieved 28 July 2017.
  72. "АО "Адмиралтейские верфи" Спустило На Воду Подводную Лодку "Великий Новгород"" [JSC Admiralty Shipyards launched the submarine "Veliky Novgorod"]. Admiralty Shipyard (Press release) (in Russian). 28 March 2019. Archived from the original on 28 March 2019. Retrieved 28 March 2019.
  73. "Fifth Varshavyanka submarine joins Russia's Navy". TASS. 26 October 2016. Archived from the original on 26 October 2016. Retrieved 26 October 2016.
  74. "АО "Адмиралтейские верфи" Спустило На Воду Подводную Лодку "Колпино"" [JSC Admiralty Shipyards launched the submarine "Kolpino"]. Admiralty Shipyard (Press release) (in Russian). 31 May 2016. Archived from the original on 28 March 2019. Retrieved 31 May 2016.
  75. "АО "Адмиралтейские Верфи" Заложило Подводные Лодки "Петропавловск-Камчатский" И "Волхов"" [JSC Admiralty Shipyards launched submarines "Petropavlovsk-Kamchatsky" and "Volkhov"]. Admiralty Shipyard (Press release) (in Russian). 28 July 2017. Archived from the original on 28 March 2019. Retrieved 28 July 2017.
  76. "АО "Адмиралтейские Верфи" Спустило На Воду Первую В Серии Подводную Лодку Для Тихоокеанского Флота" [JSC Admiralty Shipyards Launched the First Submarine in Series for the Pacific Fleet]. Admiralty Shipyard (Press release) (in Russian). 28 March 2019. Archived from the original on 28 March 2019. Retrieved 28 March 2019.
  77. "First Project 636.3 submarine enters service with Russia's Pacific Fleet". TASS. 25 November 2019. Retrieved 26 November 2019.
  78. "АО "Адмиралтейские Верфи" Спустило На Воду Подводную Лодку Для Тихоокеанского Флота России" [JSC Admiralty Shipyards Launched a Submarine for the Russian Pacific Fleet]. Admiralty Shipyard (Press release) (in Russian). 26 December 2019. Archived from the original on 26 December 2019. Retrieved 26 December 2019.
  79. "Project 636.3 diesel-electric submarine Volkhov entered service with Russian Navy". NavyRecognition.com. 24 October 2020.
  80. https://www.navyrecognition.com/index.php/naval-news/naval-news-archive/2022/january/11292-russian-navy-launches-kalibr-cruise-missile-from-kilo-class-submarine-volkhov.html
  81. "АО "Адмиралтейские Верфи" Заложило Подводные Лодки "Магадан" И "Уфа"" [JSC Admiralty Shipyards Launched Submarines "Magadan" And "Ufa"]. Admiralty Shipyard (Press release) (in Russian). 1 November 2019. Archived from the original on 1 November 2019. Retrieved 1 November 2019.
  82. "АО "Адмиралтейские Верфи" Спустило На Воду Подводную Лодку Для Тихоокеанского Флота России" [JSC Admiralty Shipyards Launched a Submarine for the Russian Pacific Fleet]. Admiralty Shipyard (Press release) (in Russian). 26 March 2021. Retrieved 26 March 2021.
  83. "Project 636.3 Magadan submarine joins Russian Navy".
  84. "Project 636.3 Magadan submarine to join Russian Navy on October 12 — Defense Ministry".
  85. "Project 636.3 Magadan Begins Trials – SeaWaves Magazine".
  86. "Russia's Admiralty Shipyards launches Project 636.3 submarine 'Magadan' for Pacific Fleet". NavalNews.com. 27 March 2021.
  87. Gady, Franz-Stefan (25 November 2019). "First Project 636.3 Kilo-Class Attack Sub Enters Service With Russia's Pacific Fleet". The Diplomat.
  88. https://flotprom.ru/2021/%D0%90%D0%B4%D0%BC%D0%B8%D1%80%D0%B0%D0%BB%D1%82%D0%B5%D0%B9%D1%81%D0%BA%D0%B8%D0%B5%D0%92%D0%B5%D1%80%D1%84%D0%B814/
  89. "Shipbuilders to float out improved Kilo-class sub for Russian Pacific Fleet by yearend".
  90. "Project 636.3 Magadan submarine to join Russian Navy on October 12".
  91. "АО "Адмиралтейские Верфи" Спустило На Воду Подводную Лодку "Уфа"" [JSC Admiralty Shipyards Launched Submarine Ufa] (Press release) (in Russian). Admiralty Shipyard. 31 March 2022. Archived from the original on 31 March 2022. Retrieved 31 March 2022.
  92. "Строительство боевых кораблей основных классов для ВМФ России на 01.01.2022". navy-korabel (in Russian). 1 January 2022.
  93. "Russian shipbuilders to lay keel of six warships and submarines on August 9–10 — source".
  94. "Putin launches construction of six warships for Russian Navy". tass.com. 23 August 2021. Retrieved 23 August 2021.{{cite web}}: CS1 maint: url-status (link)
  95. Latest full operational capability projected by 2025. Gady, Franz-Stefan (25 November 2019). "First Project 636.3 Kilo-Class Attack Sub Enters Service With Russia's Pacific Fleet". The Diplomat.
  96. "Project 636.3 last conventional sub for Russia's Pacific Fleet to enter service in 2024". TASS. 19 March 2021.
  97. Delivery of unit 6 for Pacific Fleet projected by 2024 with full operational capability projected by 2025. "Project 636.3 Volkhov Commissioned". Seawaves.com. 27 October 2020.
  98. "Подводные лодки. Проект 636 и модификации" [Submarines. Project 636 and modifications]. Deepstorm.ru (in Russian). Retrieved 5 February 2021.
  99. "ВМФ: после завершения "тихоокеанской серии" строительство "Варшавянок" продолжат" [Navy: After the completion of the "Pacific series", the construction of "Varshavyanka" will continue]. flotprom.ru (in Russian). 25 November 2019. Retrieved 27 December 2019.
  100. "Analysis: latest Russian Navy contracts offer development conclusions". Navy Recognition. 16 September 2020.
  101. "Под балтийской волной: новые субмарины отправят на северо-запад". iz.ru (in Russian). 12 July 2021.
This article is issued from Wikipedia. The text is licensed under Creative Commons - Attribution - Sharealike. Additional terms may apply for the media files.
