Austin-class amphibious transport dock

The Austin class of amphibious transport dock followed the Raleigh class and was followed by the San Antonio class. Note that some sources consider Cleveland (seven built) and Trenton (two built) ships to be a part of the Austin class, but the Naval Vessel Registry lists them as a separate class.

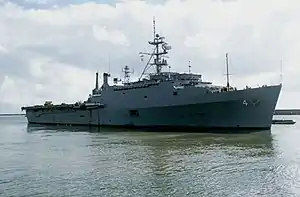

USS Austin (LPD-4)
Class overview
NameAustin class
Builders
Operators
Preceded by Raleigh class
Succeeded by San Antonio class
In commission1965-2017 (USN)
Planned13
Completed12
Cancelled1
Active1 (with India)
Retired11
General characteristics
TypeAmphibious transport dock
Tonnage7,713 DWT
Displacement
  • 9,201 tons (light)
  • 16,914 tons (full)
Length
  • 548 ft (167 m)w/l
  • 569 ft (173 m) o/a
Beam
  • 84 ft (26 m) w/l
  • 105 ft (32 m) extreme
Draft
  • 22 ft (6.7 m) navigational,
  • 34 ft (10 m) ballasted
Propulsion2 × boilers, 2 × steam turbines, 2 × shafts, 24,000 shp (18,000 kW)
Speed21 knots (24 mph; 39 km/h)
Boats & landing
craft carried
Complement24 officers, 396 enlisted, 900 marines
Armament
  • 2 × 25 mm Mk 38 guns
  • 2 × Phalanx CIWS
  • 8 × .50-calibre machine guns
Aircraft carriedUp to 6 CH-46 Sea Knight helicopters

Cleveland sub-class
USS Dubuque (LPD-8)
Class overview
NameCleveland class
Preceded byAustin class
Succeeded byTrenton class
CompletedCleveland, Dubuque, Denver, Juneau, Coronado, Shreveport, Nashville

The Cleveland class of amphibious transport dock was a refinement of the Austin class. All earlier classes are being replaced by the San Antonio class.

The Cleveland class was originally to consist of 10 ships, LPD-7 through LPD-16. Seven ships were actually completed and listed in this class, with one being converted to a command ship, Coronado (AGF-11). Trenton (LPD-14) and Ponce (LPD-15) were originally to be included in the Cleveland class, but were completed as almost identical Trenton-class LPDs. The most noticeable difference between the Cleveland and Austin classes is the extra level in the superstructure housing a flag bridge and command and control facilities for an embarked staff which the earlier ships lack.

Trenton sub-class
USS Trenton (LPD-14)
Class overview
NameTrenton class
Operators
Preceded byCleveland class
Succeeded by San Antonio class
CompletedTrenton, Ponce

The Trenton class of amphibious transport dock was a refinement of the Austin and Cleveland classes. Note that some sources consider Cleveland and later ships to be a part of the Austin class, but the Naval Vessel Registry lists them as a separate class. All earlier classes are being replaced by the San Antonio class. LPD-16, while authorized, was cancelled before being constructed.

As of August 2013 the above mentioned site Naval Vessel Registry lists USS Trenton and USS Ponce as Austin-class amphibious transport docks.

Ships
ShipHull no.BuilderIn serviceHomeportNVR page
AustinLPD-4New York Naval Shipyard1965–2006Norfolk, VirginiaLPD04
OgdenLPD-5New York Naval Shipyard1965–2007San Diego, CaliforniaLPD05
DuluthLPD-6New York Naval Shipyard1965–2005San Diego, CaliforniaLPD06
Cleveland sub-class
ClevelandLPD-7Ingalls Shipbuilding1967–2011San Diego, CaliforniaLPD07
DubuqueLPD-8Ingalls Shipbuilding1967–2011San Diego, CaliforniaLPD08
DenverLPD-9Lockheed Shipbuilding1968–2014Sasebo, JapanLPD09
JuneauLPD-10Lockheed Shipbuilding1969–2008Sasebo, JapanLPD10
CoronadoLPD-11/
AGF-11		Lockheed Shipbuilding1970–2005San Diego, CaliforniaAGF11
ShreveportLPD-12Lockheed Shipbuilding1970–2007Norfolk, VirginiaLPD12
NashvilleLPD-13Lockheed Shipbuilding1970–2009Norfolk, VirginiaLPD13
Trenton sub-class
TrentonLPD-14Lockheed Shipbuilding1971–2007Norfolk, VirginiaLPD14
PonceLPD-15/
AFSB(I)-15		Lockheed Shipbuilding1971–2017Norfolk, VirginiaLPD15

References

    This article includes information collected from the Naval Vessel Register, which, as a U.S. government publication, is in the public domain.
