Pujiang line

The Pujiang line of Shanghai Metro (simplified Chinese: 上海轨道交通浦江线; traditional Chinese: 上海軌道交通浦江線; pinyin: Shànghǎi Guǐdào Jiāotōng Pǔjiāng Xiàn) is an automated, driverless, rubber-tired Shanghai Metro line in the town of Pujiang in the Shanghainese district of Minhang. It was originally conceived as phase 3 of Shanghai Metro Line 8, but afterwards was constructed as a separate line, connecting with Line 8 at its southern terminus, Shendu Highway.[4] The line opened for passenger trial operations on March 31, 2018.[5][6][7] It is the first automated, driverless people mover line in the Shanghai Metro, and has 6 stations with a total length of 6.689 kilometres (4.156 mi).[4] It is colored grey on station maps.[6] The people mover was expected to carry 73,000 passengers a day.[8]

Pujiang line
A Pujiang line metro car
Overview
Other name(s)M8s, Phase 3 of Shanghai Metro Line 8 (planned name)
Native name浦江线
StatusOperational
OwnerShanghai Shentong Metro Group Co., Ltd.
LocalePujiang, Minhang District, Shanghai
TerminiShendu Highway
Huizhen Road
Connecting lines 8
Stations6
Websitewww.shmetro.com
Service
TypeRubber-tyred metro
System Shanghai Metro
ServicesShendu Highway ↔ Huizhen Road
Operator(s)Shanghai Keolis Public Transport Operation Management Co. Ltd.
Depot(s)Pujiang town depot
Rolling stock11 Bombardier Innovia APM 300[1] 4-car trains[2]
Daily ridership36,000 (2019 Peak)[3]
History
CommencedDecember 25, 2015 (2015-12-25)
OpenedMarch 31, 2018 (2018-03-31)
Technical
Line length6.689 km (4.16 mi)
Number of tracks2
CharacterElevated
Electrification700 V DC third rail
Operating speed80 km/h (50 mph)[1]
Average speed: 36 km/h (22 mph)
SignallingBombardier CITYFLO 650 CBTC
Route map
Shiguang Road
 Shendu Highway
 8
Pujiang town depot (line 8)
Pujiang town depot (Pujiang line)
 Sanlu Highway
 Minrui Road
 Puhang Road
 Dongchengyi Road
 Huizhen Road

The line is operated by Shanghai Keolis Public Transport Operation & Management Co. Ltd. (Chinese: 上海申凯公共交通运营管理有限公司), a joint venture owned by Keolis and Shanghai Shentong Metro Group for at least five years after opening.[9][10]

History
Shanghai Metro Puijiang Line opening history
SegmentCommencementLengthStation(s)Name
Shendu Highway — Huizhen Road 31 March 2018 6.689 km (4.16 mi) 6 Phase 1

Stations
Further information: List of Shanghai Metro stations

Service routes
Shanghai Metro Pujiang Line service routes
Routes Station name Connections Distance Location Open-
ing		 Plat-
form[11]
M English Chinese km min
● Shendu Highway 沈杜公路  8  Fengpu Line 0.00 0.00 0 Pujiang, Minhang 31 March
2018[12]		 Elevated
Two Side & one Island
● Sanlu Highway 三鲁公路 2.00 2.00 3 Elevated
Side
● Minrui Road 闵瑞路 1.00 3.00 5
● Puhang Road 浦航路 0.80 3.80 7
● Dongchengyi Road 东城一路 1.20 5.00 9
● Huizhen Road 汇臻路 1.60 6.60 11 Elevated
Island

Important stations

Future expansion

There are no plans to extend the line.

Station name change

Headways
Shanghai Metro Pujiang Line headway
TimeShendu Highway -
Huizhen Road
Monday - Friday (Working Days)
Morning peak7:00–9:003 minutes and 20 seconds
Off-peak9:30–18:006 minutes and 30 seconds
Evening peak18:00–20:003 minutes and 50 seconds
Other hours
First Train — 7:00
20:00 — Last Train
 8 minutes
Saturday and Sunday (Weekends)
Peak hours7:00–20:00About 6 minutes
Other hours
First Train — 7:00
20:00 — Last Train
 About 9 minutes

[13]

Technology

Signalling

The entire operation of the new line is remotely controlled from a central dispatch room. Trains operate using the Cityflo 650 communications-based train control (CBTC). The automatic trains had initially six staff members working at each APM station, but the operator hopes to reduce that to one or two.[14]

Rolling stock

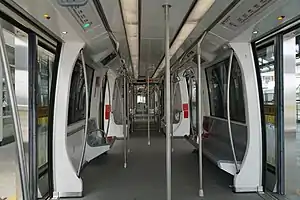

Train interior

The Pujiang line uses rubber-tyred Bombardier Innovia APM 300 trains. The trains have 4 cars each, totaling 51 metres (167 ft) in length, with capacity for 566 passengers per train.[2] There are large windows at each end of the train allowing passengers to look out the front and rear. The small trains with rubber tires running on concrete tracks allow for turning radii as tight as 22m to be negotiated, compared to over 300m for typical metro on steel rails.[14] On 13 January 2017, Bombardier delivered the first out of 44 autonomous people movers to Shanghai.[1]

Shanghai Metro Pujiang Line rolling stock
SetManufacturerTime of
manufac-
turing		TypeNo
of
car		Assembly[lower-alpha 1]SeriesNotes
11CRRC Nanjing Puzhen Co., Ltd.2016-2017L4APM 300[15] Cars with rubber tires running on concrete tracks.

Notes
  1. Tc: Trailer with cab; Mp: EMU with pantograph; M: EMU without pantograph.
